Responses elicited by 2,3-butanedione

Odorant Information

Name:	2,3-butanedione	Links:
InChI:	InChI=1S/C4H6O2/c1-3(5)4(2)6/h1-2H3	PubChem
InChIKey:	QSJXEFYPDANLFS-UHFFFAOYSA-N	ChemSpider
SMILES:	CC(C(C)=O)=O	ChEBI
CAS:	431-03-8
CID:	650

Available Datasets

Silbering.2011.AL_8a, Silbering.2011.AL, Hallem.2004.WT, Silbering.2011.WT, Kreher.2008.EN, Hallem.2006.EN, Hallem.2004.EN, Bruyne.2001.RR, Stensmyr.2012.WT, Bruyne.2001.WT, Dobritsa.2003.EN, Schmuker.2007.TR, Muench.2016.AntGC1, Nissler.2007.nmr, Dweck.2013.WT, Pelz.2006.ALEC50, Kreher.2005.EN, Bruyne.1999.WT, Galizia.2009.nmr, Kwon.2007.EN, Kwon.2007.WT, Dobritsa.2003.WT, Muench.2016.AntGC3, Ronderos.2014.WT

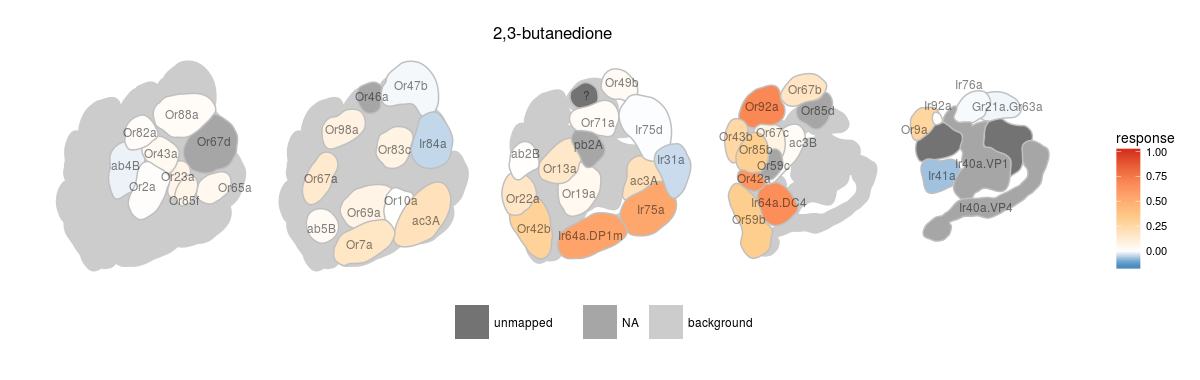

Activation Pattern

Response Table

ORs	Response
ac3A	0.192
ac3B	0.026
ac4	0.022
Or1a	0.025
Or2a	0.012
Or7a	0.163
Or9a	0.269
Or10a	0.003
Or13a	0.15
Or19a	0.041
Or22a	0.16
Or23a	0.068
Or30a	0.015
Or33a	0.021
Or33b	-0.016
Or35a	0.049
Or42a	0.616
Or42b	0.291
Or43a	0.038
Or43b	0.254
Or45a	0.09
Or45b	0.048
Or47a	0.085
Or47b	-0.008
Or49a	0.08
Or49b	0.031
Or59a	0.052
Or59b	0.318
Or65a	0.042
Or67a	0.135
Or67b	0.167
Or67c	0.075
Or71a	0.019
Or74a	0.026
Or82a	0.018
Or85a	0.103
Or85b	0.305
Or85c	0.18
Or85f	0.058
Or88a	0.023
Or92a	0.689
Or94a	0.005
Or94b	0.056
Or98a	0.081
Gr21a.Gr63a	-0.01
ab2B	0.005
ab4B	-0.014
ab5B	0.032
Or69a	0.073
ac1	0.114
ac2	0.41
ac3_noOr35a	0.073
Ir31a	-0.04
Ir41a	-0.069
Ir75a	0.53
Ir75d	-0.002
Ir76a	-0.006
Ir84a	-0.045
Ir92a	0.005
Ir64a.DC4	0.661
Ir64a.DP1m	0.549
Or83c	0.078

Download

download QSJXEFYPDANLFS-UHFFFAOYSA-N.csv
download QSJXEFYPDANLFS-UHFFFAOYSA-N.png

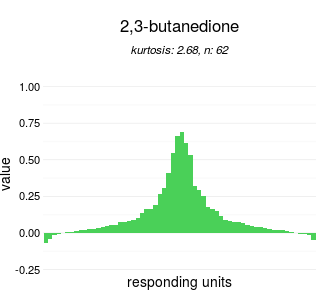

download QSJXEFYPDANLFS-UHFFFAOYSA-N_tuningCurve.png

Preview
