Response profile for responding unit ac1BC

General Information

Name:ac1BCCo-receptor:Comment:
Receptor(s):Expressed in:summed responses from ac1B and C ORNs, only A neuron could be separated (Marshall et al. 2010)
Neuron:ac1B+CLinks: FlyBase, VirtualFlyBrain
Sensillum:ac1
Glomerulus:?
Related:ac1B, ac1

Available Datasets

Marshall.2010.WT

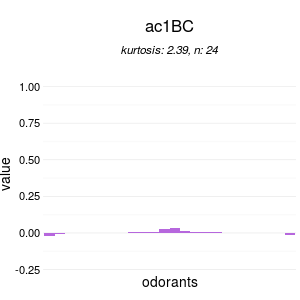

Tuning Curve

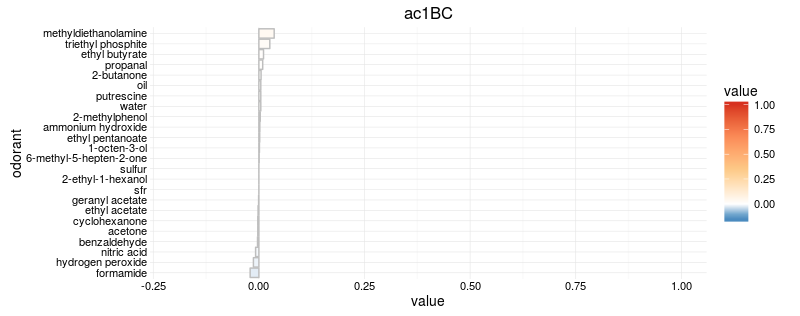

Response Profile

Response Table

Name InChIKey CAS model.response
sfr SFR SFR 0
water XLYOFNOQVPJJNP-UHFFFAOYSA-N 7732-18-5 0.005
ammonium hydroxide VHUUQVKOLVNVRT-UHFFFAOYSA-N 1336-21-6 0.002
putrescine KIDHWZJUCRJVML-UHFFFAOYSA-N 110-60-1 0.005
geranyl acetate HIGQPQRQIQDZMP-DHZHZOJOSA-N 105-87-3 -0.001
propanal NBBJYMSMWIIQGU-UHFFFAOYSA-N 123-38-6 0.009
acetone CSCPPACGZOOCGX-UHFFFAOYSA-N 67-64-1 -0.003
2-butanone ZWEHNKRNPOVVGH-UHFFFAOYSA-N 78-93-3 0.005
6-methyl-5-hepten-2-one UHEPJGULSIKKTP-UHFFFAOYSA-N 110-93-0 0.001
cyclohexanone JHIVVAPYMSGYDF-UHFFFAOYSA-N 108-94-1 -0.003
benzaldehyde HUMNYLRZRPPJDN-UHFFFAOYSA-N 100-52-7 -0.003
2-methylphenol QWVGKYWNOKOFNN-UHFFFAOYSA-N 95-48-7 0.003
1-octen-3-ol VSMOENVRRABVKN-UHFFFAOYSA-N 3391-86-4 0.001
ethyl acetate XEKOWRVHYACXOJ-UHFFFAOYSA-N 141-78-6 -0.002
ethyl butyrate OBNCKNCVKJNDBV-UHFFFAOYSA-N 105-54-4 0.011
ethyl pentanoate ICMAFTSLXCXHRK-UHFFFAOYSA-N 539-82-2 0.002
oil solvent solvent 0.005
methyldiethanolamine CRVGTESFCCXCTH-UHFFFAOYSA-N 105-59-9 0.036
triethyl phosphite BDZBKCUKTQZUTL-UHFFFAOYSA-N 122-52-1 0.026
2-ethyl-1-hexanol YIWUKEYIRIRTPP-UHFFFAOYSA-N 104-76-7 0
hydrogen peroxide MHAJPDPJQMAIIY-UHFFFAOYSA-N 7722-84-1 -0.013
nitric acid GRYLNZFGIOXLOG-UHFFFAOYSA-N 7697-37-2 -0.008
formamide ZHNUHDYFZUAESO-UHFFFAOYSA-N 75-12-7 -0.021
sulfur RWSOTUBLDIXVET-UHFFFAOYSA-N 7704-34-9 0

Downloads

download ac1BC.csv
download ac1BC_RP.png
download ac1BC_tuningCurve.png
